Washing Unit АP-1 The automatic flushing machine is designed to control the process of flushing and disinfection of the milk pipe system, milking machines and milk-carrying units of milking installations. – The body of the machine is made of stainless steel. – The software enables to customize the parameters of the washing process and the connected equipment in a wide range. – The automatic flushing machine is controlled by a simple and convenient touch panel. – Power supply voltage of the automatic flushing machine is 380 V. – Connected peripheral equipment can have voltage 220V and 24V. – Connected heaters are not more than 12kW. – Overall dimensions, mm (DxWxH): 680x480x250.

Washing Unit АP-1 (with tank) The automatic flushing machine is designed to control the process of flushing and disinfection of the milk pipe system, milking machines and milk-carrying units of milking installations. – The body of the machine is made of stainless steel. – The software enables to customize the parameters of the washing process and the connected equipment in a wide range. – The automatic flushing machine is controlled by a simple and convenient touch panel. – Power supply voltage of the automatic flushing machine is 380 V. – Connected peripheral equipment can have voltage 220V and 24V. – Connected heaters are not more than 12kW. – Overall dimensions, mm (DxWxH): 680x480x250.

Washing Unit АP-1M (without tank) The automatic flushing machine is designed to control the process of flushing and disinfection of the milk pipe system, milking machines and milk-carrying units of milking installations. – The body of the machine is made of stainless steel. – The software enables to customize the parameters of the washing process and the connected equipment in a wide range. – The automatic flushing machine is controlled by a simple and convenient touch panel. – Power supply voltage of the automatic flushing machine is 380 V. – Connected peripheral equipment can have voltage 220V and 24V. – Connected heaters are not more than 12kW. – Overall dimensions, mm (DxWxH): 680x480x250.

Washing Unit АP-1M (with tank) The automatic flushing machine is designed to control the process of flushing and disinfection of the milk pipe system, milking machines and milk-carrying units of milking installations. – The body of the machine is made of stainless steel. – The software enables to customize the parameters of the washing process and the connected equipment in a wide range. – The automatic flushing machine is controlled by a simple and convenient touch panel. – Power supply voltage of the automatic flushing machine is 380 V. – Connected peripheral equipment can have voltage 220V and 24V. – Connected heaters are not more than 12kW. – Overall dimensions, mm (DxWxH): 680x480x250.

Wash Cups and Trays ExtraWash-01 The washing platform is designed to hold milking cups with teat rubber during the washing process. The washing platform is compatible with milking systems where the milking cup has a diameter of 45mm. The base, mounting bracket and nozzles of the washing platform are made of stainless steel. The cup holder is made of reinforced polyamide and has 5 fixed positions. The washing platform has 2 positions for easy operation – folded and unfolded. Overall dimensions in unfolded form, mm: DxWxH – 350x200x125 Overall dimensions in folded form, mm: DxWxH – 210x200x232 Inner diameter of the connected hose, – 18mm. Possibility to connect the washing pressure hose on both left and right sides.

Cow immobiliser is designed to hold cows in a fixed position during milking, veterinary examination or artificial insemination. The anti kick bar fixes one leg of the animal, has a sliding design and easy adjustment. The anti kick bar is made of galvanized pipe with a diameter of 27 and 32 mm. Rubber plugs are installed on the ends of the pipes. Adjustable length of the anti kick bar: 445-675 mm

350 ml, for paired milking machines

350 ml, for paired milking machines without valve

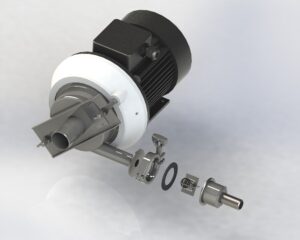

Place of installation of NMU-6N pump – milk discharger. All parts of the pump that come in contact with milk are made of stainless steel. Pump capacity -6.5 m3/h. Electric motor characteristics – N=0.75kW.,I=380V. Inlet pipe – Ø40mm., outlet pipe – Ø22mm., – addword outside diameter. Equipped with rubber check valve.

Milk Pump NMU-6N-01M Place of installation of NMU-6N-01M pump – milk discharger. All parts of the pump that come in contact with milk are made of stainless steel. Pump capacity -6.5 m3/h. Electric motor characteristics – N=0.75kW, I=380V. Inlet pipe – Ø40mm, outlet pipe – Ø22mm -add word outside diameter. Equipped with a rubber cone check valve with spring.

Designed for pumping milk from the cooler to the milk truck. All parts of the pump that come in contact with milk are made of stainless steel. Pump capacity -10 m3/h. Electric motor characteristics – N=1.1 kW.,I=380V. Inlet pipe – Ø40mm., outlet pipe – Ø38mm., – add word outside diameter. Equipped with rubber check valve.

NMU-6N/ 10G Pump Place of installation of NMU-6N/ 10G pump – milk discharger. All parts of the pump that come in contact with milk are made of stainless steel. It has an additional connection for the connection of the milk discharger – Ø16mm. Pump capacity -10 m3/h. Electric motor characteristics – N=1.1 kW, I=380V. Inlet pipe – Ø40mm, outlet pipe – Ø35mm. Equipped with a rubber check valve

NMU-6N/10GDZ-01 Pump Place of installation of NMU-6N/ 10GDZ pump - milk discharger. All parts of the pump that come in contact with milk are made of stainless steel. It has an additional connection for the connection of the milk discharger - Ø16mm. Pump capacity -10 m3/h. Electric motor characteristics - N=1.1 kW, I=380 V. Equipped with rubber cone check valve with spring

NMU-6N/10GDZ-02 Milk pump
Place of installation of NMU-6N/10GDZ-02 pump – milk discharger.
All parts of the pump that come in contact with milk are made of stainless steel.
It has an additional connection for the connection of the milk discharger – Ø16mm.
Pump capacity -10 m3/h. Electric motor characteristics – N=1.1 kW, I=380 V.
The inlet pipe is Ø40mm, the outlet pipe is a threaded fitting for a milk coupling DN40 DIN.
Equipped with a rubber check cone valve with a spring.

NMU-6N/10GDZ-01M-L Pump (left rotation of the pump) Place of installation of NMU-6N/ 10GDZ pump – milk discharger. All parts of the pump that come in contact with milk are made of stainless steel. It has an additional connection for the connection of the milk discharger – Ø16mm. Pump capacity -10 m3/h. Electric motor characteristics – N=1.1 kW, I=380 V. Equipped with rubber check valve.

Place of installation of NMU-6N/13 pump – milk discharger. All parts of the pump that come in contact with milk are made of stainless steel. It has an additional connection for the connection of the milk discharger – Ø16mm. Pump capacity -13 m3/h. Electric motor characteristics – N=1.5 kW, I=380 V. Inlet pipe – Ø40mm, outlet pipe – Ø35mm. It has a modification of the outlet pipe with a DN40 DIN nut for connecting the FM-3 filter.

Place of installation of NMU-6N/13 pump – milk discharger. All parts of the pump that come in contact with milk are made of stainless steel. It has an additional connection for the connection of the milk discharger – Ø16mm. Pump capacity -13 m3/h. Electric motor characteristics – N=1.5 kW, I=380 V. Inlet pipe – Ø40mm, outlet pipe – Ø35mm. It has a modification of the outlet pipe with a DN40 DIN nut for connecting the FM-3 filter.

Milk pumps NMU-6N/15
Designed for pumping milk from the cooler to the milk tank.
All parts of the pump that come into contact with milk are made of stainless steel.
Pump capacity -15 m3/h.
Electric motor characteristics – N=2.2 kW, I=380 V.
Inlet pipe – Ø40mm, outlet pipe – Ø38mm.

NMU-6N/15M Pump
Designed for pumping milk from the cooler to the milk truck.
All parts of the pump that come in contact with milk are made of stainless steel.
Pump capacity -15 m3/h.
Electric motor characteristics – N=2.2 kW, I=380V.
Inlet pipe (dismountable) – Ø40mm, outlet pipe (dismountable) – Ø38mm.

Designed for pumping milk from the cooler to the milk truck. All parts of the pump that come in contact with milk are made of stainless steel. Pump capacity -25 m3/h. Electric motor characteristics – N=5.5 kW, I=380V. Inlet pipe (dismountable) – Ø50mm, outlet pipe (dismountable) – Ø50mm.

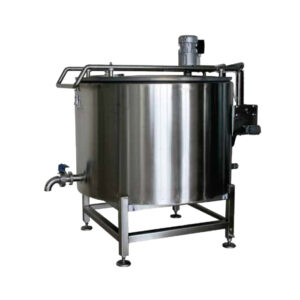

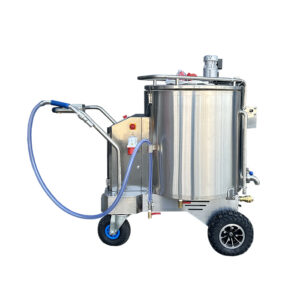

It is used to pasteurize milk and then feed it to calves. The milk is heated to a certain temperature in the stainless steel tank of the pasteurizer, kept at this temperature for 30 minutes and then cooled.

It is used to pasteurize milk and then feed it to calves. The milk is heated to a certain temperature in the stainless steel tank of the pasteurizer, kept at this temperature for 30 minutes and then cooled.

It is used to pasteurize milk and then feed it to calves. The milk is heated to a certain temperature in the stainless steel tank of the pasteurizer, kept at this temperature for 30 minutes and then cooled.

It is used to pasteurize milk and then feed it to calves. The milk is heated to a certain temperature in the stainless steel tank of the pasteurizer, kept at this temperature for 30 minutes and then cooled.

It is used to pasteurize milk and then feed it to calves. The milk is heated to a certain temperature in the stainless steel tank of the pasteurizer, kept at this temperature for 30 minutes and then cooled.

It is used to pasteurize milk and then feed it to calves. The milk is heated to a certain temperature in the stainless steel tank of the pasteurizer, kept at this temperature for 30 minutes and then cooled.

It is used to pasteurize milk and then feed it to calves. The milk is heated to a certain temperature in the stainless steel tank of the pasteurizer, kept at this temperature for 30 minutes and then cooled.

It is used to pasteurize milk and then feed it to calves. The milk is heated to a certain temperature in the stainless steel tank of the pasteurizer, kept at this temperature for 30 minutes and then cooled.

It is used to pasteurize milk and then feed it to calves. The milk is heated to a certain temperature in the stainless steel tank of the pasteurizer, kept at this temperature for 30 minutes and then cooled.

Folding trolley TU-250 is designed for transportation of bulk and solid materials.

KC-DN40(24) valve is designed for drainage of various liquids (water, weak solutions of acids and alkalis, disinfectants, etc.) in dairy and industrial equipment. Valve type is normally closed (NC). Supply voltage is 24V (AC/DC). Valve body in contact with liquid is made of high quality stainless steel. Outside diameter of outlet and outlet pipe is 48mm.

KC-DN40(230) valve is designed for drainage of various liquids (water, weak solutions of acids and alkalis, disinfectants, etc.) in dairy and industrial equipment. Valve type is normally closed (NC). Supply voltage is 230V (AC). Valve body in contact with liquid is made of high quality stainless steel. Outside diameter of outlet and outlet pipe is 48mm.

Milk Claw 300 ml without shutoff valve (25 pcs/pg). Milk collector is designed for milk collection from milk cups and further evacuation of milk from milk chamber into milk pipe or milking bucket.

Milk Claw 300 ml with shutoff valve (25 pcs/pg). Milk collector is designed for milk collection from milk cups and further evacuation of milk from milk chamber into milk pipe or milking bucket.

Milk filter is made of high quality stainless steel. It is installed after the pump of milk receiving unit and serves for milk filtration during milking. The filter is equipped with a stainless steel spiral where a replaceable filter bag is installed. Connection to the pump is made by means of DN40DIN nut.The outer diameter of the outlet pipe is 40mm. Distinctive features of the filter: Absence of milk hoses in the connection milk pump – filter. There is a drain valve (it allows to effectively remove the residues of water, washing solution from the filter housing for easy dismantling of the bag filter element).The filter is mounted vertically, and it greatly simplifies the replacement of the filter element. It is used in pair with milk pump NMU-6N/10GDZ-02 or other pump. Dimensions and equipment, construction at the request of the Customer.

The CHU has a light indication of the current stage and digital indication of the adjusted water temperature. Electrical elements of the CHU are protected against short circuit and current leakage. – CHU-1 for pipelines up to 200 meters long (circulation pump power up to 100W); Overall dimensions, mm (DxWxH): – CHU-1 – 600х550х250;

The CHU has a light indication of the current stage and digital indication of the adjusted water temperature. Electrical elements of the CHU are protected against short circuit and current leakage. – CHU-2 for pipelines up to 400 meters long (circulation pump power up to 410W). Overall dimensions, mm (DxWxH): – CHU-2 – 600х570х280.

Combing brush CHM-1M is designed to clean and care cattle skin. Scratching brush is electric, automatic, wall mounting type. Rotation speed of 35 rpm. Rotation time of 60+/-10seconds (can be reconfigured). Supply voltage is 230V. Activation of the combing brush is performed by deviating from the initial vertical state by 10 degrees. The direction of the brush changes each time it is switched on. There is a protection against winding on the brush (by creating excessive torque on the shaft). The configuration of the brush is “hourglass”. Dimensions length 1350 width 500 height 1500mm

(A) Length of teat rubber = 315 mm (B) Diameter of inlet hole in head = 20 mm (C) Inner diameter of middle part of teat rubber = 26 mm (D) Diameter of milk tube = 20 mm

adapt. 999009-01 (A) Length of teat rubber = 315 mm (B) Diameter of inlet hole in head = 20 mm (C) Inner diameter of middle part of teat rubber = 26 mm (D) Diameter of milk tube = 20 mm

(A) Length of teat rubber = 303 mm (B) Diameter of inlet hole in head = 28.1 mm (C) Inner diameter of middle part of teat rubber = 26 mm (D) Diameter of milk tube = 10.5 mm

adapt. 7021.2725.230 Westfalia GEA (A) Length of teat rubber = 173 mm (B) Diameter of inlet hole in head = 27.5 mm (C) Inner diameter of middle part of teat rubber = 23 mm (D) Diameter of milk tube = 19 mm

adapt. 7029.2725.010 GEA Westfalia (A) Length of teat rubber = 176 mm (B) Diameter of inlet hole in head = 25.5 mm (C) Inner diameter of middle part of teat rubber = 23 mm (D) Diameter of milk tube = 15 mm

Inner diameter - 16 mm. Outer diameter - 27 mm. material RUBBER

Inner diameter - 50mm. Outer diameter - 60 mm. material PVC

Inner diameter - 40 mm. Outer diameter - 49,5 mm. material PVC

Inner diameter – 14 mm. Outer diameter – 25 mm. material RUBBER

Inner diameter - 19 mm. Outer diameter - 32 mm. material RUBBER

Inner diameter - 32 mm. Outer diameter - 41 mm. material PVC.

Inner diameter – 16 mm. Outer diameter – 26 mm. material PVC

Inner diameter – 14,5 mm. Outer diameter – 24,5 mm. material PVC

Inner diameter - 11 mm. Outer diameter - 21 mm. material RUBBER

Inner diameter – 7 mm. Outer diameter – 14 mm. material RUBBER

Inner diameter - 7 mm. Outer diameter - 14 mm. material RUBBER

Inner diameter – 7 mm. Outer diameter – 14 mm. material RUBBER

Shell UDM-01.01.000-10. Shells are designed for installation of teat rubber and transfer of vacuum effect on its walls. The shell is made of stainless steel 2mm thick. The diameter of the hole for the installation of the nipple rubber – 41mm, for the installation of the milk outlet – 18mm. The outer diameter of the vacuum-diverting pipe is 9 mm. Overall dimensions of the cup, mm DxDiam: 191х45. *Dimensions at the request of the Customer.
